Lettuce immune responses and apoplastic metabolite profile contribute to reduced internal leaf colonization by human bacterial pathogens

BMC Plant Biology volume 25, Article number: 635 (2025) Cite this article

Abstract

Background

Human bacterial pathogens such as Salmonella enterica and Escherichia coli can colonize the apoplast of leafy greens, where they may evade standard sanitization measures and persist until produce consumption. Bacterial survival in this niche is influenced by plant immune responses that may vary according to bacterial species and plant genotypes. The variability in immune responses has been associated with differences in pathogen persistence capacity within the phyllosphere. In addition, emerging evidence suggests that preexisting and inducible plant metabolites contribute to either restricting or facilitating colonization of human pathogens in plant tissues. Identifying the molecular mechanisms underlying these interactions is crucial for developing strategies to mitigate contamination in fresh produce.

Results

We characterized whole-leaf transcriptome and apoplast metabolome profiles of three lettuce cultivars upon exposure to the human pathogenic bacteria S. enterica ser. Typhimurium 14028s and E. coli O157:H7. The lettuce genotypes Lollo Rossa and Green Towers exhibited stronger transcriptional modulation, primarily associated with defense-related processes and showed reduced bacterial survival in their apoplast. Surprisingly, Green Towers did not generate callose deposition or reactive oxygen species burst responses at levels comparable to that of Lollo Rossa, suggesting it has distinct modifications in the apoplastic conditions that restrict pathogen persistence. Apoplastic metabolomic profiling revealed specific compounds alterations in Green Towers linked to bacterial survival, indicating their potential role in this genotype’s defense mechanism. In contrast, the lettuce cultivar Red Tide exhibited minimal transcriptional and metabolic modulation, lack of robust defense activation, which was accompanied by apoplastic bacterial survival.

Conclusions

This study provides evidence that lettuce cultivars exhibit distinct molecular responses that may influence the persistence of human bacterial pathogens in the leaf apoplast. The results indicate that both immune response activation and metabolite composition may contribute to restrict apoplastic bacterial persistence or growth. These findings offer novel insights into the genetic and biochemical factors shaping lettuce-pathogen interactions, which might inform breeding programs and agronomic practices aimed at enhancing food safety.

Peer Review reports

Introduction

The apoplast encompasses all compartments beyond the plasmalemma, including the cell wall, intercellular spaces, and the xylem [1]. This dynamic environment contains gas, liquid, and a diverse range of metabolites [2, 3] and plays a central role in essential processes such as gas exchange between mesophyll cells and the atmosphere [2], nutrient uptake and solute transport [4], cell wall assembly [5], external signal perception [6], and intercellular communication [7]. The apoplast is also a key site for plant-microbe interactions [8], where pathogens and endophytic microbes can colonize foliar tissues, forming pathogenic, commensal, or mutualistic associations with the host plant [9]. Phyllosphere microbial communities can contribute to plant health [10, 11] and might influence human health through potential links with the human gut microbiome [12]. However, foliar tissues may also serve as reservoirs for human pathogens, which might result in foodborne illness outbreaks through consumption of contaminated fresh produce [13, 14].

To thrive in the apoplast, microbes must suppress or evade plant immune responses [9, 15], acquire nutrients, and manipulate host cell physiology to promote the release of water and nutrients [16, 17]. In response, plants activate defense mechanisms, including microbe-associated molecular patterns (MAMPs) perception, reactive oxygen species (ROS) bursts, stress hormone signaling, pathogenesis-related protein secretion, and secondary metabolite production [18]. These are fast defense responses that alter the biochemistry and physiology of the apoplast early in plant-human pathogen interactions. For example, lettuce exposed to Salmonella enterica serovar Typhimurium 14028s or Escherichia coli O157:H7 shows ROS burst and callose deposition [19, 20]. Interestingly, the extent of defense responses varies across different human bacteria and plant cultivars, at both inter- and intra-specific levels [19, 21,22,23] and this variability is associated with human pathogen population sizes in the phyllosphere [19].

Bacteria possess remarkable metabolic adaptation; however, the composition and availability of environmental nutrients may determine whether bacterial species can successfully colonize specific niches [24, 25]. For example, in the human gut, S. enterica manipulates the host cells to alter the local metabolite profile, gaining a competitive metabolic advantage over resident microbiota [26]. Similarly, the metabolite composition of the phyllosphere could potentially impact the colonization capacity of human pathogens in this niche. Distinct metabolic shifts have been observed in human pathogenic bacteria exposed to plant tissues from different organs and cultivars [22, 27,28,29]. The epiphytic persistence of S. enterica correlates with its growth in fruit exudates from various tomato cultivars with distinct surface metabolomic profiles [30]. Likewise, isolate- and plant-specific growth capacities have been reported for pathogenic E. coli in apoplastic wash fluid (AWF) recovered from lettuce and spinach leaves [31, 32]. These findings indicate that preexisting and potentially induced plant metabolomic profiles may play a role in either supporting or restricting bacterial contamination in plant tissues.

In this study, we investigated how S. enterica and E. coli O157:H7 contamination of the leaf apoplast alters transcriptomic and metabolomic profiles of lettuce cultivars with a contrasting bacterial survival phenotype. Integration of these omics’ datasets revealed key cultivar-specific responses that may influence pathogen survival, providing novel insights to inform strategies toward enhanced safety of fresh produce.

Results

O157:H7 and STm 14028s differentially modulate the transcriptome of lettuce cultivars

Previously, we have determined that growth of E. coli O157:H7 (hereafter O157:H7) and S. enterica serovar Typhimurium (STm) 14028s varies in different cultivars of lettuce [19]. Thus, we chose three cultivars, Green Towers (GT), Lollo Rossa (LR), and Red Tide (RT) (Fig. S1), which showed a contrasting bacterium survival trait to gain deeper insights into the metabolic processes altered upon bacterial contamination. To this end, we first analyzed the transcriptome profile of lettuce leaves at 1 and 7 DPI (Dataset S1).

Hierarchical clustering analysis of Log2 fold change (FC) values (bacterium- vs. mock-inoculation for each cultivar and time point) derived from normalized read counts aligned to all detected 19,928 lettuce transcripts (Dataset S2) formed two primary clusters: one comprising of all RT treatments and GT at 7 DPI and another consisting of all LR treatments and GT at 1 DPI (Fig. S2). The latter showed more pronounced relative gene expression levels. The second clustering level separated RT at 1 DPI and LR at 1 DPI, respectively. The third clustering level was formed by the day of sampling, in which transcription profiles of each cultivar were closest between both bacterial treatments within the same day (Fig. S2).

Next, we identified significant differentially expressed genes with pair-wise comparisons (bacterial vs. mock inoculations) for each cultivar and time point. LR exhibited the largest changes in the presence of STm 14028s or O157:H7, followed by GT and RT (Table 1). For instance, at 1 DPI, STm 14028s induced significant modulation of 4,448 genes in LR, in contrast to 1,458 in GT and 346 in RT. Moreover, STm 14028s elicited larger changes in gene expression compared to O157:H7 among all lettuce cultivars (Table 1). Overall, transcriptional changes were more substantial at 1 DPI than at 7 DPI, except for O157:H7 in GT and RT where only a few DEGs were detected (Table 1). Intersection analysis revealed the level of overlap among DEGs detected for each pairwise comparison. A minimum overlap was observed within GT and RT samples due to the low number of DEGs, whereas LR samples showed large overlaps (Fig. S3A-C). For instance, 566 downregulated (46.4%) and 568 upregulated (56.2%) genes in LR inoculated with STm 14028s were shared between 7 DPI and 1 DPI, suggesting a lasting plant genotypic response to this bacterium (Fig. S3B). In addition, there was a high overlap between O157:H7 and STm 14028s treatments in LR at 1 DPI, where 358 (78.2%) downregulated DEGs and 1,495 (87.3%) upregulated DEGs were shared between O157:H7 and STm 14028s treated LR samples (Fig. S3B).

Table 1 Number of significant differentially expressed genes (DEGs) and differentially accumulated metabolites (DAMs) in the indicated lettuce cultivar at 1- and 7-days post inoculation (DPI) with either STm 14028s or O157:H7 when compared to mock-inoculated plants. The direction of change, up or down, is based on a Log2 fold change ≤ − 1 or ≥ 1 and p-value < 0.05. Adjusted p-values were used for DEGs. The number of DEGs with an assigned KEGG ontology (KO) protein ID are shown in the KO column. The number of dams included known and unknown metabolites. Statistical analysis to identify DEGs and dams are shown in dataset S1 and dataset S6, respectively
Full size table

The intersection analysis to assess the overlap of DEGs among the cultivars in response to the same bacterium showed little to no overlap in O157:H7-treated samples (Fig. S3D), possibly because this bacterium did not modulate GT and RT transcriptomes as extensively as the LR transcriptome (Table 1). By contrast, the intersection analysis for STm 14,028-treated samples revealed a high level of overlap between GT at 1 DPI and LR at 1 and 7 DPI (Fig. S3E). For instance, 164 downregulated (51.4%) and 829 upregulated (72.8%) genes were shared between GT and LR at 1 DPI with STm 14028s (Fig. S3E).

Lettuce metabolism is altered by O157:H7 and STm 14028s at the transcriptional level

To identify metabolic processes potentially altered in lettuce cultivars in response to O157:H7 or STm 14028s, we conducted a Gene Ontology (GO) term enrichment analysis (Dataset S3). Significantly enriched (p < 0.05) GO terms were grouped according to functional categories, including signaling, reactive oxygen species (ROS), photosynthesis, carbohydrate and amino acid metabolism, cell wall metabolism, and transmembrane transport. The Log2 p-values of the enrichment analysis across all treatments are shown in Dataset S4 and were used as input for hierarchical clustering analysis and heatmap visualization (Fig. 1). Within the signaling category, the most significantly enriched GO terms were protein phosphorylation (GO:0006468), protein autophosphorylation (GO:0046777), and cell surface receptor signaling pathway (GO:0007166). These processes were highly regulated in GT by STm 14028s at 1 DPI and in LR by STm 14028s and O157:H7. GO terms related to ethylene, salicylic acid, abscisic acid, and auxin biosynthesis and signaling processes were also significantly overrepresented, particularly in LR and GT. Modulation of the defense responses was also evident, including GO terms associated with systemic acquired resistance (GO:0010112 and GO:0009862), as well as response against bacterium (GO:0050829 and GO:1900426), fungus (GO:0050832) and insect (GO:1900367) were among the most significantly enriched terms. The regulation of these functions by O157:H7 and STm 14028s was particularly high in LR and GT compared to RT. Photosynthesis was distinctly affected, with various GO terms among the most significantly overrepresented in the lettuce cultivars GT and LR upon exposure to O157:H7 and STm 14028s. In contrast, processes linked to photosynthesis were minimally altered in the foliar apoplast of RT after the inoculations (Fig. 1).

Fig. 1
figure 1

Gene ontology (GO) enrichment analysis of the transcriptomic response of the lettuce cultivars Green Towers, Lollo Rossa, and Red Tide at 1- and 7-days post inoculation with Escherichia coli O157:H7 (Ec) or Salmonella enterica ser. Typhimurium 14028s (Se). Heat map shows the absolute value of Log10p-values of significantly (p < 0.05) overrepresented GO terms. GO terms are grouped by functional categories listed in Dataset S4. Heatmaps and clustering were conducted using the heatmap.2 R package with default analysis settings. ROS = reactive oxygen species

Full size image

To gain further insights into the metabolic pathways altered by bacterial contamination as a factor of the plant cultivar, we mapped lettuce transcript sequences to KEGG pathways. Out of the total lettuce transcripts (19,928) captured in the RNA-seq analysis, 9,213 (46.2%) could be assigned to a KEGG Ontology (KO) protein ID, with 3,821 being unique, indicating multiple genes being assigned to the same protein ID (Dataset S1). KO protein IDs were used to reconstruct a reference for the overall metabolic routes represented in the dataset (Fig. S4A). To identify KEGG metabolic routes that were modulated upon bacterium contamination, DEGs with a KO protein ID (Table 1; Dataset S1) were mapped to KEGG pathways (Fig. S4B). Enriched KEGG metabolic pathways were only detected in GT at 1 DPI with STm 14028s, LR at 1 and 7 DPI with STm 14028s, and LR at 1 DPI with O157:H7 (Fig. 2). The relatively low number of DEGs with KO proteins IDs (Table 1; Dataset S1; Fig. S4B) did not allow the identification of pathways in other treatments. Nonetheless, the KEGG pathway enrichment analysis showed 23 metabolic pathways that are either uniquely or commonly overrepresented in those treatments, these pathways fall within the broad categories of carbohydrate, energy, fatty acids, amino acids, and secondary metabolites (Fig. 2).

Fig. 2
figure 2

KEGG pathway enrichment analysis of differentially expressed genes (DEGs) in the lettuce cultivars Green Towers (GT) and Lollo Rossa (LR) at 1- and 7-days post inoculation (DPI) with Salmonella enterica ser. Typhimurium 14028s or Escherichia coli O157:H7. Pathway coverage ratio corresponds to the number of DEGs mapped to a KEGG pathway divided by the total number of genes comprising that KEGG pathway. To map the genes to the metabolic pathways, the protein sequences of the corresponding annotated genome were used to obtain the KEGG protein IDs using the KofamKOALA BLAST tool (https://www.genome.jp/tools/kofamkoala/). Protein sequences with an E-value < 1 × 10− 5 (Dataset S1) were used as input for the KEGG Mapper Reconstruct Pathway tool (https://www.kegg.jp/kegg/tool/map_pathway.html). Mapped KEGG metabolic categories are listed on the right. Enrichment analysis was conducted with the hypergeometric test and significantly enriched pathways are marked with *, where * = p < 0.5; ** = p < 0.01; *** = p < 0.001

Full size image

Carbohydrate metabolism was significantly altered in the lettuce cultivars LR and GT. Enriched KEGG pathways included those related to galactose, glucose, fructose, starch, and sucrose metabolism, while the TCA cycle and pentose phosphate pathway were not significantly affected (Fig. 2). Pathways in the energy metabolism category of KEGG, including photosynthesis and carbon fixation, were also enriched in LR at 1 and 7 DPI with STm 1428s (Fig. 2). Various primary pathways were significantly modulated potentially towards the biosynthesis of secondary metabolites. For instance, the fatty acid degradation pathway was enriched in LR, possibly generating Acetyl-CoA for terpenoid synthesis through the mevalonate pathway (Fig. 2). The metabolism of alpha-linolenic acid, involved in the biosynthesis of jasmonates [33], was also significantly enriched in LR post inoculations with O157:H7 and STm 14028s (Fig. 2). In addition, the KEGG pathway for the degradation of valine, leucine, and isoleucine were significantly enriched in LR at 1 DPI with STm 14028s (Fig. 2). These pathways are connected downstream with the biosynthesis of secondary metabolites such as terpenoids that were significantly stimulated in LR (Fig. 2). Furthermore, the complex phenylpropanoid biosynthetic pathways were substantially altered in LR and GT at 1 DPI with STm 14028s (Fig. 2).

Overall, transcriptome profiling revealed that the response to O157:H7 and STm 14028s varied among lettuce cultivars, with LR and GT exhibiting more similar and stronger regulation of the immune system and metabolic processes than RT.

The apoplastic metabolome is differentially modulated by O157:H7 and STm 14028s

To investigate the chemical changes in the apoplast of lettuce leaves colonized by STm 14028s or O157:H7, we extracted AWF from leaves of the three lettuce cultivars and analyzed their metabolome profile. A total of 332 metabolites were detected and quantified based on normalized peak heights (Dataset S5). Hierarchical clustering analysis of the metabolome profiles revealed clear distinctions among treatments, which primarily clustered according to lettuce genotypes, indicating cultivar-specific metabolome and responses to the inoculation treatments (Fig. S5). The analysis also showed a temporal impact on metabolite relative abundance, with some compounds maintaining consistent levels while others fluctuating over time. Within these primary groups, inoculation type further contributed to the variation. All STm 14028s-treated samples consistently separated from mock-treated samples for both time points, suggesting a strong and sustained metabolic modulation (Fig. S5). The clustering of O157:H7-inoculated samples happened with either STm 14028s- or mock-treated samples, where distinct metabolic differences from the mock treatments were observed in GT at 7 DPI and in LR and RT at 1 DPI (Fig. S5).

To assess changes in the metabolome profile upon bacterial contamination, we identified differentially accumulated metabolites (DAMs), defined as those with a Log2 FC (bacterium vs. mock) ≤ − 1 or ≥ 1 and p-value < 0.05 (Dataset S6; Table 1). Out of the 332 detected metabolites, 114 have known functions that include 32 sugars and sugar alcohols, 20 amino acids, 32 organic acids, and 7 phenolics (Dataset S6). A total of 124 compounds showed significant net changes in at least one treatment, and DAMs ranged from 0 to 43 depending on the lettuce cultivar and time after inoculation (Dataset S6; Table 1). The hierarchical clustering of treatments based on Log2 FC values for all DAMs revealed very distinct metabolite accumulation patterns among lettuce genotypes in response to STm 14028s and O157:H7. Overall, STm 14028s induced more extensive metabolite changes, with GT showing major shifts as early as 1 DPI, while RT and LR exhibited stronger responses at 7 DPI (Fig. 3; Table 1).

Fig. 3
figure 3

Hierarchical clustering analysis of all 124 known and unknown differentially accumulated metabolites (DAMs) detected in the apoplast wash fluid collected from the lettuce cultivars Green Towers, Lollo Rossa, or Red Tide at 1- or 7-days post inoculation with Escherichia coli O157:H7 or Salmonella enterica ser. Typhimurium 14028s. Raw peak heights were normalized with Log10 transformation and auto-scaling functions and subjected to Student´s t-test pair-wise comparisons (bacterium vs. mock) to identify DAMs through the MetaboAnalyst5.0 software. DAMs were determined as those having a p-value < 0.05 and a Log2 fold change (FC) ≤ − 1 or ≥ 1. White boxes represent not significant net accumulation. Input data are listed in Dataset S6. Heatmaps and clustering were created with the pheatmap R package using default settings

Full size image

Next, we created a heatmap to visualize the accumulation dynamics of DAMs with known functional classification identified with all pair-wise comparison (Fig. 4) as follows:

Fig. 4
figure 4

Primary and secondary metabolites with significant differential accumulation in the apoplastic wash fluid collected from the lettuce genotypes Green Towers (GT), Lollo Rossa (LR), and Red Tide (RT) at 1- and 7-days post inoculation with Escherichia coli O157:H7 (Ec) or Salmonella enterica ser. Typhimurium 14028s (Se). Raw peak heights were normalized with the Log10 transformation and auto-scaling functions and subjected to Student´s t-test pair-wise comparisons (bacterium vs. mock) to identify differentially accumulated metabolites (DAMs) through the MetaboAnalyst5.0 software. DAMs were determined as those having a p-value < 0.05 and a Log2 fold change (FC) ≤ − 1 or ≥ 1. White boxes represent not significant net accumulation. Heatmap was created with the heatmap.2 R package using default settings

Full size image

Sugars and related metabolites

GT exhibited the most extensive changes in this category. Some metabolites followed similar trends across lettuce genotypes, such as fructose, which accumulated at 7 DPI in GT with O157:H7 and in LR with STm 14028s, and xylose, which decreased in GT and LR at 1 DPI with STm 14028s. In addition, galactitol levels were reduced in LR and GT at 1 DPI following STm 14028s inoculation, while conduritol-beta-epoxide declined in GT and RT under the same conditions. Moreover, galactinol accumulated in GT in response to both pathogens, whereas erythrose and fructose increased exclusively in GT after O157:H7 inoculation. In contrast, RT primarily exhibited significant metabolite reductions in this category.

Amino acid and nitrogen-containing compounds

This category displayed particularly pronounced alterations in GT, where STm 14028s triggered a significant decrease in nine amino acids at 1 DPI, including valine, leucine, and proline, which were also reduced in response to O157:H7. Conversely, LR and RT showed fewer and more specific changes. For instance, maleimide levels increased in RT at 7 DPI with STm 14028s, while adenine accumulation was observed in LR at 1 DPI with STm 14028s.

Organic acids

These compounds were only differentially accumulated in GT and LR. A significant decline of glucuronic acid, glyceric acid, and threonic acid was induced by STm 14028s in GT. In LR, gluconic acid levels increased significantly following STm 14028s inoculation, whereas lactic acid and malonic acid levels declined.

Secondary metabolites

Six phenolic compounds were differentially accumulated across treatments. The phenolic acid precursors quinic acid and shikimic acid decreased in GT and RT following STm 14028s inoculation, with GT displaying an earlier response. Additionally, 3,4-dihydroxycinnamic acid (caffeic acid) significantly increased in GT at 1 DPI with STm 14028s, whereas 4-hydroxyphenylacetic acid accumulated in LR and 4’5-dihydroxy-7-glucosyloxyflavanone in RT following O157:H7 inoculation. Salicylic acid (SA) significantly increased in LR and RT at 1 DPI with STm 14028s but remained unchanged in GT. Moreover, LR also exhibited SA accumulation at 1 DPI in response to O157:H7.

GT and LR show variable levels of SA-dependent immune responses

Our multi-omics analysis revealed that lettuce cultivars LR and GT underwent substantial transcriptomic reprogramming, particularly through the activation of defense-related genes (Fig. 2), alongside distinct metabolite accumulation patterns in the apoplast (Fig. 4). Notably, LR exhibited a stronger overall response than GT (Table 1) and significantly accumulated SA (Fig. 4) in the presence of bacteria. These findings prompted us to test whether these bacteria induce hallmark SA-dependent defense responses in our cultivars.

First, we confirmed that O157:H7 and STm 14028s populations significantly decreased (p < 0.001) in the leaf apoplast of GT and LR at 7 DPI, whereas O157:H7 titters increased (p < 0.0001) in RT leaves, and STm 14028s remained unchanged (p = 0.064) (Fig. 5A). Then, we evaluated ROS burst and callose deposition in leaves after bacterial inoculations as described by Jacob and Melotto [19]. Interestingly, O157:H7- and STm 14028s-induced ROS burst in GT leaves were comparable to that in RT, however significantly lower (p < 0.0001) than in LR (Fig. 5B). Likewise, O157:H7 induced similar levels of callose deposits in GT and RT, both significantly lower (p < 0.0001) than in LR, while STm 14028s provoked an intermediate callose response in GT, between LR and RT (Fig. 5C).

Fig. 5
figure 5

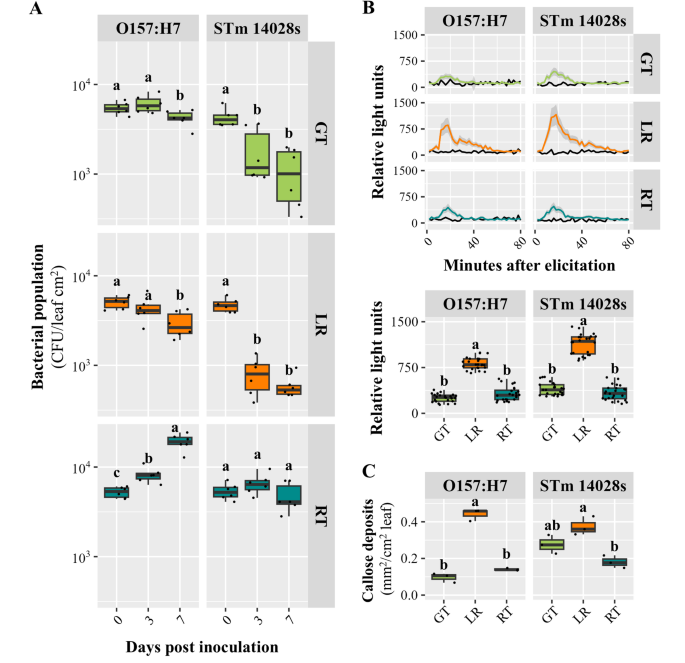

GT and LR show similar bacterial population declined, but variable levels of SA-dependent immune responses. (A) Escherichia coli O157:H7 and Salmonella enterica ser. Typhimurium 14028s population kinetics in leaves of Green Towers (GT), Lollo Rossa (LR), and Red Tide (RT). Apoplastic bacterial population size was estimated by serial dilution plating method using surface sterilized leaves collected at 0-, 3- and 7-days post inoculation. Three plants were used for each sampling point and graphs show combined data from two independent experiments (n = 6). (B) Temporal production of reactive oxygen species after elicitation with mock (black lines) or bacterial solutions. The curve peak (16–18 min after elicitation) was used to assess statistically significant differences among the genotypes. (C) Callose deposition was quantified as the area covered by deposits (mm2) over cm2 leaf at 24 h after inoculations Graphs in B and C show the peak value (n = 24) or callose deposition area (n = 3), respectively, of bacterium-treated samples normalized by the mock-treated samples. Different letters on the top of adjacent boxes (i.e., within the plant genotype or days post inoculation) indicate significant statistical differences among the means calculated with ANOVA followed by Tukey’s test (α = 0.05)

Full size image

Overall, these findings suggest that the survival of these human bacterial pathogens in the lettuce cultivar GT is only partially explained by SA-dependent plant immune responses.

Discussion

Bacterial pathogens of human can reach the leaf interior through stomatal pores [34,35,36,37,38,39]. Once in the apoplast, these pathogens might encounter a more favorable environment than the exposed leaf surface [40, 41] and gain protection from standard sanitization practices used in the leafy greens industry [42,43,44]. However, their survival in this niche is strongly influenced by plant immune responses [19, 45, 46]. Furthermore, it is expected that the fate of human pathogens in the apoplast is further shaped by specific plant-microbe-microbe interactions [47, 48], environmental conditions [49, 50], and bacterial traits [23, 51]. By integrating temporal leaf transcriptome and leaf apoplast metabolome analyses, we focused on identifying plant molecular components that may contribute to reduced bacterial survival in distinct lettuce cultivars.

Our findings provided evidence that LR might rely on SA-dependent defense mechanisms to counter STm 14028s and O157:H7 colonization [18, 52]. The significant apoplastic accumulation of SA (Fig. 4) coincided with the upregulation of genes involved in SA biosynthesis (Dataset S1), including EPS1, arogenate dehydratase, and phenylalanine ammonia-lyase [53, 54]. LR also exhibited a stronger ROS burst (Fig. 5B) associated with the induction of OXI1 and RBOH genes that are key regulators of ROS-mediated defense [55, 56]. Interestingly, it has been reported that increase in H2O2 concentration is associated with O157:H7 population decrease in the lysate of middle and young leaves of different lettuce types [57]. Furthermore, increased callose deposition (Fig. 5C) corresponded with the upregulation of CALLOSE SYNTHASE genes in response to both bacteria (Dataset S1), suggesting robust cell wall reinforcement [58]. The upregulation of EXO70 homologs, especially in response to STm 14028s (Dataset S1), further indicate active vesicle trafficking mechanisms involved in human pathogen restriction [45]. Thus, these findings above align with previous reports demonstrating the importance of SA signaling in limiting STm 14028s and O157:H7 colonization in plants [45, 46, 59].

We observed that GT might have distinct defense mechanisms, differing significantly from LR despite commonalities in transcriptomic responses (Figs. 2 and 3, S2, S3). This genotype exhibited net accumulation of apoplastic caffeic acid and upregulation of shikimate O-hydroxycinnamoyltransferase gene, suggesting a role for hydroxycinnamic acid metabolism in its defense strategy [60, 61]. Although caffeic acid biosynthesis has been linked to SA-dependent defense responses [62], GT did not show increased apoplastic SA (Fig. 4) and partially induced PTI-associated defenses (Fig. 5). Interestingly, GT activated ethylene biosynthesis and signaling pathways, including the upregulation of genes encoding SAM synthetase, ACC synthase, ACC oxidase, and multiple ethylene-responsive transcription factors (Dataset S1), supporting the role of this hormone in defense against human pathogens [46, 59, 63]. GT also accumulated galactinol after exposure to both pathogens, a signaling metabolite implicated in biotic stress mitigation [64, 65]. Furthermore, GT exhibited a significant reduction in the accumulation of nine amino acids in the apoplast (Fig. 4). The availability of nutrients in this foliar environment can significantly impact the survival of human bacterial pathogens [31, 32]. These findings suggest that, while GT exhibits a less pronounced defense response than LR, it has distinct mechanisms to restrict STm 14028s and O157:H7 persistence.

Compared to LR and GT, RT exhibited surprisingly marginal transcriptional and metabolic modulation, with minimal activation of PTI-associated defenses in response to both STm 14028s and O157:H7. While a few genes were differentially expressed in response to STm 14028s at 1 DPI, most metabolite changes in the apoplast occurred later at 7 DPI (Table 1). This weak response may have played a role in limiting STm 14028s population growth, nonetheless it persisted over time (Fig. 5). In contrast, the apparent lack of an effective defense response in RT likely facilitated a significant increase in the O157:H7 apoplastic population.

We have identified some molecular components involved in the differential response of lettuce genotypes to STm 14028s and O157:H7 among water-soluble and primary metabolites (Dataset S5). However, proteins, secondary metabolites, and ions could also influence the differential apoplastic interaction between lettuce and human pathogens [8, 66]. In addition, metabolite dynamics in this niche might not be solely plant-driven, where both plant and bacterial responses may contribute to the chemical composition of contaminated leaves. Furthermore, the contribution of post-transcriptional modulation of biosynthetic pathways and metabolite transport should not be overlooked. Future studies in this direction should enhance the understanding of how these additional factors might have an impact on the observed phenotypes.

Overall, STm 14028s elicited a stronger response than O157:H7 at transcriptomic, metabolomic, and phenotypic levels. Furthermore, O157:H7 exhibited higher survival across the lettuce genotypes (Fig. 5), aligning with our previous findings with various lettuce genotypes as well as Arabidopsis [19, 22, 67]. The molecular mechanisms underlying differential activation of plant immunity by various human pathogenic bacteria are not fully understood. However, variations in bacterial extracellular appendages recognized by plant receptors [21] and the ability to suppress plant defenses [51, 68] have been proposed as contributing factors.

Conclusion

This study provides evidence that lettuce cultivars exhibit distinct molecular responses that could influence the survival of human bacterial pathogens in the apoplast. Depending on the cultivar, immune activation or metabolite composition may have a prominent role in restricting human pathogen growth in the leaf apoplast. These findings offer novel insights into the genetic and biochemical factors shaping lettuce-pathogen interactions, which could inform breeding programs and agronomic practices aimed at enhancing food safety.

Methods

Plant material and growth conditions

The loose-leaf lettuce (Lactuca sativa L. var. acephala Dill.) cultivars Lollo Rossa (LR) and Red Tide (RT) and the romaine lettuce (L. sativa L. var. longifolia (Lam.) Janchen) cultivar Green Towers (GT) were grown as previously described [19]. Briefly, lettuce plants were grown in pots containing a commercial soil mix (Sun Gro® Sunshine® #1 Grower Mix with RESiLIENCE™, MA, USA), under photosynthetically active light intensity of 240 ± 10 µmol/m2/sec with a 12-hour photoperiod, and day and night conditions of 19 ± 1 °C and 75 ± 4% relative humidity (RH) and 18 ± 1 °C and 92 ± 2% RH, respectively. All inoculations were conducted with 3.5- to 4-week-old plants (Fig. S1).

Bacterial strains and inoculum Preparation

The non-typhoid S. enterica subspecies enterica serovar Typhimurium strain 14028s [69] and the enterohemorrhagic E. coli serotype O157:H7 strain 86 − 24 [70] were grown in Low Salt Luria-Bertani (LSLB) medium (10 g/L tryptone, 5 g/L yeast extract, 5 g/L NaCl, pH 7.0) at 28 °C. Medium was supplemented with 50 µg/mL of streptomycin to grow O157:H7. To prepare the inoculum, the bacterial culture was obtained by streaking cells from frozen glycerol stocks onto solid LSLB medium and incubated overnight. From this culture, a single colony was used to inoculate liquid LSLB medium, which was incubated until reaching an OD600 of 0.9 to 1. Bacterial cells were collected by centrifugation at 1,360 xg for 20 min at 20 °C (Eppendorf Centrifuge 5810R, Rotor 157 A-4-81, Hamburg, Germany) and suspended in sterile distilled water (SDW) to obtain the desired inoculum concentration.

Leaf apoplast inoculation and bacterial enumeration

Bacterial cells were vacuum infiltrated into the leaf intercellular space of the lettuce plants as previously described [67]. Briefly, a 5 × 105 CFU/mL inoculum containing 0.01% Silwet®-L77 or a mock solution of SDW with 0.01% Silwet®-L77 were used for plant inoculations. Inoculated plants were maintained under the same environmental conditions used for plant growth. The second and third leaves of LR and the third and fourth leaves of RT and GT were sampled for bacterial enumeration as they were the two youngest, fully expanded leaves of each lettuce cultivar. At 0-, 3-, and 7-days post inoculation (DPI), the bacterial population was quantified by serial dilution plating as described by Jacob et al. [71]. The leaves were surface sterilized prior to bacteria enumeration by gentle washing in 2% (v/v) sodium hypochlorite for 1 min, 70% (v/v) ethanol for 1 min, and SDW for 1 min, followed by blotting onto a paper towel. To obtain a representative sample of the total leaf area, we collected four 0.5 cm² discs using a cork borer, two from each leaf. The leaf discs were punched from the center of the leaf blade, one on each side of the midvein. Three plants were used per sampling point and the experiment was conducted twice with independent batches of plants (n = 6). Bacterial population changes during the experiment were analyzed using ANOVA (aov function), and differences among DPI means were assessed by Tukey’s test (HSD.test function; α = 0.05) in R [72].

Transcriptomic profiling of lettuce leaves

At 1 and 7 DPI with each bacterium or mock solution, two leaves of each plant (n = 3) were excised at the base and quickly processed for analyses. A piece of foliar tissue was used for bacterial population enumeration, and the rest were placed into a 2 mL tube and immediately frozen in liquid nitrogen. Tissue disruption, RNA extraction, and RNA quality assessment were carried out as described in detail by Jacob et al. [22]. High quality RNA was used for library preparation and sequencing (Illumina HiSeq 4000) by the DNA Technologies & Expression Analysis Core Laboratory at the University of California (UC), Davis, USA following a standard protocol for 3′ tag-sequencing. Reads were analyzed by the UC Davis Bioinformatics Core. Briefly, quality control and processing (i.e., screening, trimming, and filtering) of reads were performed with the HTStream pipeline (https://s4hts.github.io/HTStream/). Alignment of processed reads to the lettuce genome (Lsat_Salinas_v7; accession GCA_002870075.1) and gene counts were conducted with the STAR software (https://github.com/alexdobin/STAR).

Differential gene expression analysis was performed using the edgeR package in R. Counts were normalized (counts per million), followed by Voom transformation and Limma linear model fitting. Group contrasts were analyzed using eBayes function, and differentially expressed genes (DEGs) were determined as those having an adjusted p-value < 0.05 and a Log2 fold change ≤ − 1 or ≥ 1. The relationship among replicates of the whole leaf RNA-seq experiment was assessed through multidimensional scale (MDS) plotting (Fig. S6A). Coordinates for MDS graphs were calculated using normalized read counts in the cmdscale function in R. Hierarchical clustering analysis of the transcriptomic dataset was performed with the pheatmap package in R with default settings. Unique and common DEGs among the samples were determined with the UpSetR function in R [73]. The enrichment analysis for gene ontology (GO) was conducted using the Kolmogorov-Smirnov test in the topGO package in R [74]. Metabolic pathway reconstruction was carried out through the KEGG Mapper tool (https://www.kegg.jp/kegg/mapper/reconstruct.html) [75], as previously described [22]. Briefly, lettuce protein sequences (Lsat_Salinas_v7; GCA_002870075.1) were analyzed in the KofamKOALA tool (https://www.genome.jp/tools/kofamkoala/) [76] to obtain KEGG protein IDs that were mapped in KEGG Mapper. Enrichment analysis of KEGG pathways was conducted through the hypergeometric test for over-representation of success as previously described [77].

Metabolomic profiling of apoplastic wash fluid (AWF)

Collection of AWF and quality control

Water-soluble metabolites present in the leaf apoplast of the different lettuce cultivars were recovered by extracting AWF following a previously described infiltration-centrifugation method [23, 78]. At 1 and 7 DPI, leaves were cut and immediately rinsed with SDW for 1 min to remove leaf surface contaminants. Leaves were carefully rolled and placed into a 60 mL syringe filled with SDW. The syringe plunger was pulled to generate negative pressure and gently relaxed to fully infiltrate the lettuce leaves. Water on the leaf surface was carefully removed with paper towel and leaves were rolled around 1 mL pipet tips, wrapped with parafilm, and put into a 50 ml centrifuge tube. Tubes were centrifuged for 8 min at 4 °C to collect the AWF, which was filter-sterilized through a 0.22 μm syringe filter (Restek, PA, USA), frozen in liquid nitrogen, and stored at -80 °C. Each replicate represents AWF collected from two leaves of each plant and four plants were used for each sampling point (n = 4).

The centrifugation force (xg) required to extract AWF effectively can vary widely across plant species, ranging from 6,000 xg in rice [79] to 200 xg in spinach [31]. Due to variations in the leaf morphology of our lettuce cultivars, we optimized AWF recovery from each of them while minimizing cytoplasmic contamination. The volume of extracted AWF increased with stronger centrifugation forces (Fig. S7A). However, the electrical conductivity (EC) of the AWF, measured using an EC meter (LAQUAtwin-EC-11, Horiba, Kyoto, Japan), also increased with stronger centrifugation (Fig. S7B), suggesting reduced membrane integrity and potential cytosolic contamination. The optimal centrifugation force that yielded sufficient volume of AWF for downstream experiments was set at 660 xg for GT, 532 xg for LR, and 299 xg for RT. Furthermore, the cellular contamination of the AWF samples was measured with the cytoplasmic enzyme glucose-6-phosphate dehydrogenase (G6PD) assay kit (MAK015-1KT, Sigma-Aldrich, MO, USA) following the manufacturer’s protocol (Fig. S8). Only AWF samples showing enzymatic activity comparable to the negative control were used for the experiments. The negative control corresponded to the zero-concentration NADH standard solution provided with the kit.

Untargeted metabolite profiling analysis

The detection and quantification of the metabolites present in the AWF obtained at 1 and 7 DPI was performed by gas chromatography time-of-flight mass spectrometry (GC-TOF-MS) analysis at the UC Davis West Coast Metabolomics Center following previously described procedures [80,81,82]. Briefly, samples (0.5 µl) were injected into an Agilent 6890 gas chromatograph (Santa Clara, CA, USA) and a Leco Pegasus IV time of flight spectrometer controlled by Leco ChromaTOF software vs. 2.32 (St Joseph, MI, USA) for data pre-processing. Resulting data files with peak heights were exported and further processed by a filtering algorithm implemented in the metabolomics BinBase database [82]. To account for differences in machine sensitivity, tuning, maintenance status, and other parameters, raw data was normalized to the sum of all identified metabolites of the samples [80].

Data processing

The metabolomic dataset was analyzed with the MetaboAnalyst5.0 software (https://www.metaboanalyst.ca/) [83]. Metabolite peak heights were normalized by Log10 transformation and auto scaling (mean-centered and divided by the standard deviation of each variable) functions. Normalized data was used to determine the relationship between replicates through principal component analysis (PCA) plotting (Fig. S6B). Student´s t-test was used to assess the effect of the treatment (mock vs. bacterial inoculations) on the relative abundance of metabolites and to identify differentially accumulated metabolites (DAMs), which were determined as those having a p-value < 0.05 and a Log2 fold change ≤ − 1 or ≥ 1. Hierarchical clustering analysis of the metabolomic dataset was performed with the pheatmap package in R with default settings.

Plant immune response assays

Two hallmark plant immune responses, reactive oxygen species (ROS) burst and callose deposition, were assessed as described in Jacob and Melotto [19]. ROS burst response was measured through a bioassay using 0.2 cm2 leaf discs from GT, LR, and RT. The discs were placed individually into wells of a 96-well microplate containing 200 µL of SDW and incubated overnight at constant light and 22 °C to reduce the wounding response. After incubation, SDW was replaced with 100 µL of the elicitation solution composed of 5.38 units of horseradish peroxidase (MilliporeSigma, Burlington, MA, USA) and 34 µg of luminol (MilliporeSigma, Burlington, MA, USA) per mL of SDW with or without 5 × 108 CFU/mL of either O157:H7 or STm 14028s. The elicitation solution containing bacteria was prepared with heat-killed bacterial suspensions (incubated at 100 °C for 10 min) to avoid possible inhibition of ROS production by any unknown virulence factor produced by live bacteria in contact with leaf tissue. After adding the elicitation solution to the wells, plates were immediately inserted into a microplate reader (Synergy H1 Hybrid Multi-Mode Reader, Biotek, Winooski, VT, USA) to measure luminescence and estimate ROS production every 2 minutes between 0 and 90 min. For each treatment, 24 leaf discs were collected from six different plants. The experiment was repeated five times with independent batches of plants.

To quantify callose deposition, leaves were syringe-infiltrated with either water (mock treatment) or 1 × 108 CFU/mL of bacterial inoculum. After 24 hours, the leaf chlorophyll was cleared by immersing leaves into 95% (v/v) ethanol and kept at 37°C for 24 hours on a rotary shaker. Cleared leaves were rinsed in 50% (v/v) ethanol for 1 min, SDW for 1 min twice, 50 mM K2HPO4 for 3 min, followed by a 1-hour incubation in a 150 mM K2HPO4 SDW based solution containing 0.05% aniline blue. Leaves were imaged with a Nikon Eclipse 80i fluorescent microscope (Nikon Corporations, Shinagawaku, Tokyo, Japan) equipped with a DAPI (4’,6-diamidino-2-phenylindole) filter, and the NIS Elements Imaging Software Version 4.13.04 was used to process the images. Three leaves of each lettuce cultivar were used per treatment and six images were randomly captured from each side of the midrib (12 pictures per leaf). Infiltrated zones, damaged areas, mid veins, and leaf edges were avoided for imaging to prevent false positive results. The total area of callose deposits (mm2 per cm2 of leaf) was quantified using the binary tool of the abovementioned software. The experiment was repeated four times with independent batches of plants.

The effect of lettuce genotype on the defense response was analyzed using ANOVA and differences among means for ROS burst peak and callose deposits were assessed with Tukey’s test (α = 0.05).

Data availability

Raw sequencing data are available at the National Center for Biotechnology Information Short Read Archive, under the BioProject accession code PRJNA1231482. Metabolomic data were deposited in the EMBL-EBI database under the accession number S-BSST1908. All additional data generated or analyzed during this study are included in this published article and its supplementary information files.
